Titanium Round Head Type Non Standard Parts with Acid Resistance
Share
Specifications: M1, M1.8, M2, M2.5, M3, M4... M24, M30
Standard: German standard DIN; American Standard ASTM/ASME/ANSI; International standard ISO etc.
Materials: Grade2, Grade 5 Ti-4Al-6v, Grade 7, Grade 12, etc.
Surface treatment: Polishing, anodic oxidation, PVD coating, etc.
Color: Natural, black, silver, pink, yellow, green, gold, blue, purple and many other colors
Customization: Support OEM or ODM
Price: Negotiable
Product details

I. Physical Properties



   Alloys containing titanium are known for their high strength, lightweight, and exceptional corrosion resistance.

   Despite being as strong as steel, titanium is about 40 percent lighter in weight, which, along with its resistance to cavitation and erosion, makes it an essential structural metal for aerospace engineers.

Titanium is also formidable in its resistance to corrosion by both water and chemical media. It does this by forming a thin layer of titanium dioxide (TiO2) on its surface that is extremely difficult for these materials to penetrate.

   Having a low modulus of elasticity means that titanium is not also very flexible, but returns to its original shape after bending, resulting in its importance to shape memory alloys.

   Titanium is non-magnetic and biocompatible (non-toxic, non-allergenic), which has led to its increasing use in the medical field.





II. Competitive Advantages to other screws



Light:

Mass of titanium is approximately 60% that of low-carbon steel and stainless steel.

Reduced load imposed to the moving parts of machines; Weight reduction of portable objects



High-corrosion-resistant:

Excellent corrosion-resistance especially to seawater and saltwater

High-corrosion-resistance; prolonged life (life cycle cost is reduced); it enables further thinning gauge



Friendly to humans:

Passive films are formed instantly

Metal ions do not elute; titanium oxide hardly gives harmful influence to humans



Photocatalysts:

Oxide layer on the surface is strictly controlled.

Disinfection and sterilization effect; Water and air purification



Does not give a perception of coldness (Does not feel cold):

Volume-specific heat capacity is approximately 60% of low-carbon steel and stainless steel

Heated with small amount of heat; titanium does not give a perception of coldness when touched by a human.





III. Quick Details



Item NameTitanium Round Head Type Non Standard Parts with Acid Resistance
MaterialTitanium, Titanium Alloy
StandardDIN, ISO, ASTM, JIS, GB, etc
SpecificationM1-M30
Drive TypeCross recessed, Allen, Hexagon Socket, Hex socket, Slotted, Hexalobular Socket, Torx, Phillips, Square, Spline
Surface TreatmentPlain, Polishing, Anodizing, PVD coating, Nyloc, Anti-fingerprint
TechniqueCold forging, CNC, Turning, Milling, etc.
ColorNatural, Blue, Green, Yellow, Gold, Black, Pink, Brown, Gradient, etc
OEMWelcome
SampleAvailable





IV. Main products



Titanium fasteners and titanium alloy fasteners: bolts, screws, nails, implants, nuts, washers, etc.

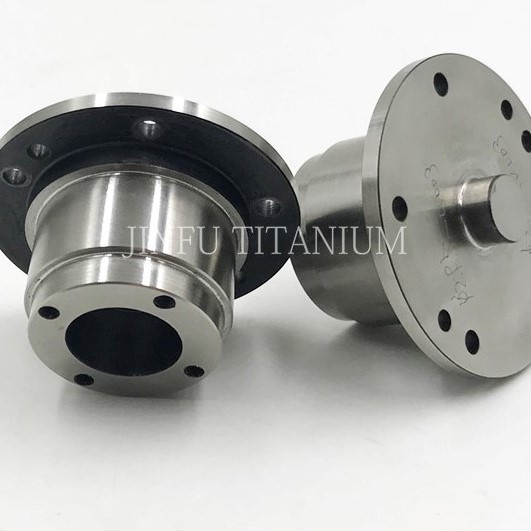

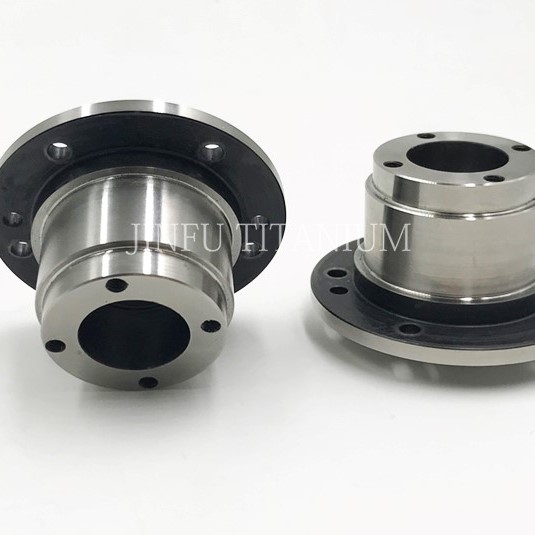

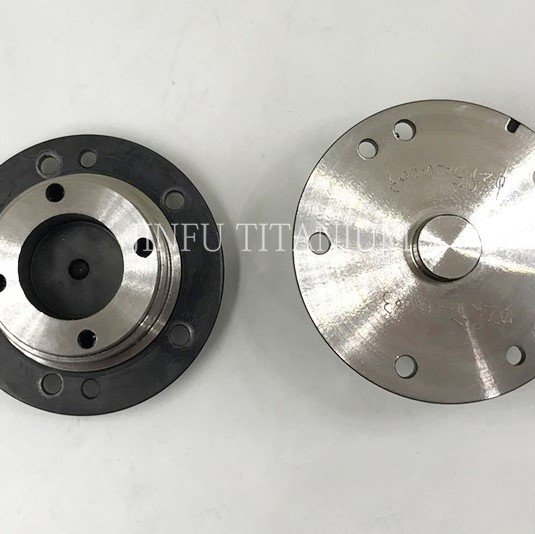

Titanium structural parts and custom parts

Colorful surface treatment: anodic oxidation
